PlayStation One Mother Board Replacement

Автор: Marjorie
  • Комментарии: 2
PlayStation One Mother Board Replacement

Сложность

Easy

Шаги

7

Необходимое время

3 минут

Введение

This will guide you in replacing the Mother board of a PlayStation One.

Инструменты

  1. 3ALaepS6kT3yXVcJ

    • Remove all cables plugged into the PlayStation.

  2. NBUNo2fFMJABwsoq
    NBUNo2fFMJABwsoq
    bTBcmGLSPyAGAgQ4

    • Flip over the PlayStation and remove the six screws from the bottom.

  3. FBFZ5VyUerpc1lJy

    • Flip the PlayStation back.

    • There are no screws holding EVERYTHING inside the PlayStation so better hold it like a burger while flipping.

  4. MPwtGZxKNqesNK4F
    MPwtGZxKNqesNK4F
    nYVjtBicU5jelO5j

    • Lift up and remove the upper case.

  5. qTYSFjDertHsfZlL
    qTYSFjDertHsfZlL
    VTr2HBTJXydPrVxS
    3XHOiVLWXwmbmrRk

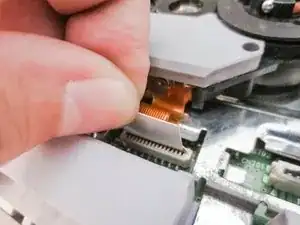

    • Disconnect the cables from the PSone’s board.

    • Take extreme care when disconnecting the ribbon cable from motherboard. You risk damaging the cable if you’re not careful.

  6. tvSALBotiUHT3SvJ
    tvSALBotiUHT3SvJ
    MGanNX1x1RVHwVmX

    • remove the metal plate

    well well a modded ps one hahah

    Bernabe Alvarez -

  7. WBwdGEVkDJQgsy6V
    WBwdGEVkDJQgsy6V
    wg2Mb5HAekUWDjyF
    BBZxJMuWQVMW1eJV

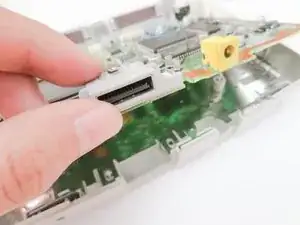

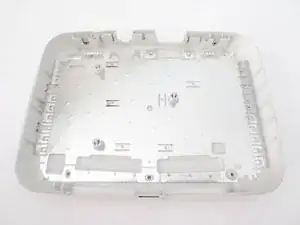

    • remove the mother board by lifting the back.

    • if you're having a hard time removing it, use your nail and lift the second controller port.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Marjorie

Участник c: 23/12/13

2297 Репутация

Один комментарий

I think that the GPU in my PS One is going bad (screen flickers green and pink on occasion but it is becoming more frequent). Would replacing the motherboard fix this? That is, is the GPU stored on the motherboard?

Eric Rosenberg -
