Acer Aspire One 722 RAM Replacement

Автор: Christian Barboza
  • Комментарии: 2
Acer Aspire One 722 RAM Replacement

Сложность

Moderate

Шаги

11

Необходимое время

10 - 40 минут

Введение

Инструменты

  1. nWJIkCBO6R15TKPD

    • Power down the netbook by pressing the power button on the top left corner.

  2. kneHOGD6DH1lYLdj

    • Close the netbook and flip it over so that the back is facing up.

  3. W1tU6UwriSYRsxOB

    • Slide the button below the battery to the right while simultaneously pulling the battery out.

  4. YJxo4ko2rSnSAH1n
    YJxo4ko2rSnSAH1n
    EQFy4vSxbMc5lHb1

    • If necessary, remove the old battery and replace it with a new one.

  5. 2ToeRxEtNOcnJgkP

    • Check the thin grooves on the side of the battery entry and line the replacement battery up to the grooves.

    Thanks-gr8 guide

    hotcatz -

    Thanks for the easy to follow instructions and for the great pictures. That made everything easy.

    Siegfried Harrison Ph.D. -

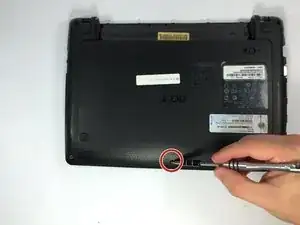

  6. kd2qBBfH1LUfG5WE

    • Remove the screw at the bottom of the laptop.

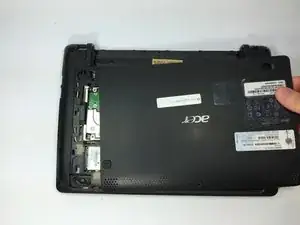

  7. AJ4GkBRL1YCIvrLE

    • Take the plastic backing plate off.

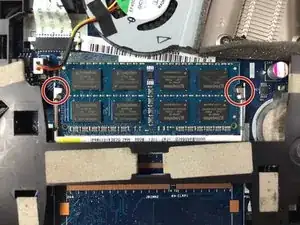

  8. HKYi4QLUhUpeZZSF

    • Unclip the two metal braces that hold the RAM in place by pushing the metal clips outwards away from the RAM itself.

    • The RAM should pop up.

  9. WVvQMfowoOWjMSfo

    • Grab the RAM and remove slowly.

  10. wCXwI1wteZ1TSBWj

    • Take the replacement RAM stick and line up the the grooves on the RAM to the grooves on the netbook so that they will fit in flush.

  11. VwypvbLnERBytfqt

    • Press down on the RAM stick and the metal clips will lock in to place.

Заключение

To reassemble your device, follow these instructions in reverse order.
