ASUS N56JR-MH71 RAM Replacement

Автор: Ruben Lopez
  • Комментарии: 0
ASUS N56JR-MH71 RAM Replacement

Сложность

Easy

Шаги

4

Необходимое время

50 секунд

Введение

If you want to upgrade memory, this guide will show you how to replace the RAM. Be sure the type of RAM used is DDR3L SDRAM.

Инструменты

  1. kNu5XmP16CGdQske
    kNu5XmP16CGdQske
    ZsAEIDOaQc45vnFy

    • Push the battery latch.

  2. XU5vvKOTZir2B5Z1

    • Keep the battery latch held while you remove the battery.

  3. sej3YnRNQsSUiZFH
    sej3YnRNQsSUiZFH
    6e2tORiGwVjiGbGx
    UE5juG6HyXkvCYLH

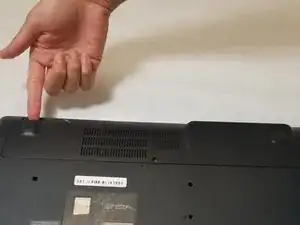

    • Remove the one screw securing the back cover.

    • Pry off the cover using a finger.

    • This device was missing its screws on the back cover when we received the device. As a result, we do not know what head type the screws are, along with their lengths.

  4. v5k4YtllxsXLufVh
    v5k4YtllxsXLufVh
    d6M6wAIIGgNaYvlh

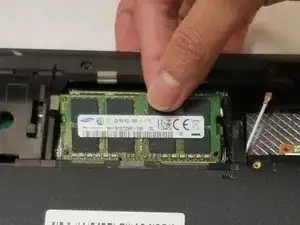

    • Push the clips outwards using two fingers.

    • Lift the RAM to remove it from the slot.

    • Repeat step 4 for the second RAM slot.

Заключение

To reassemble your device, follow these instructions in reverse order.
